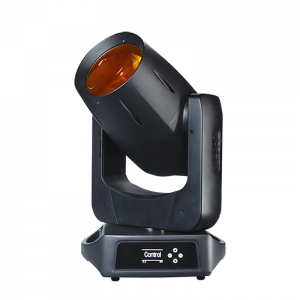

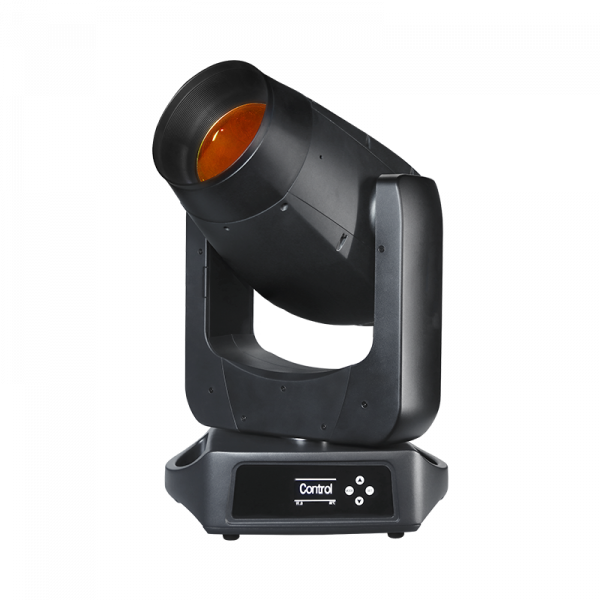

Imager H 280 – 280W BSW Moving Head Light

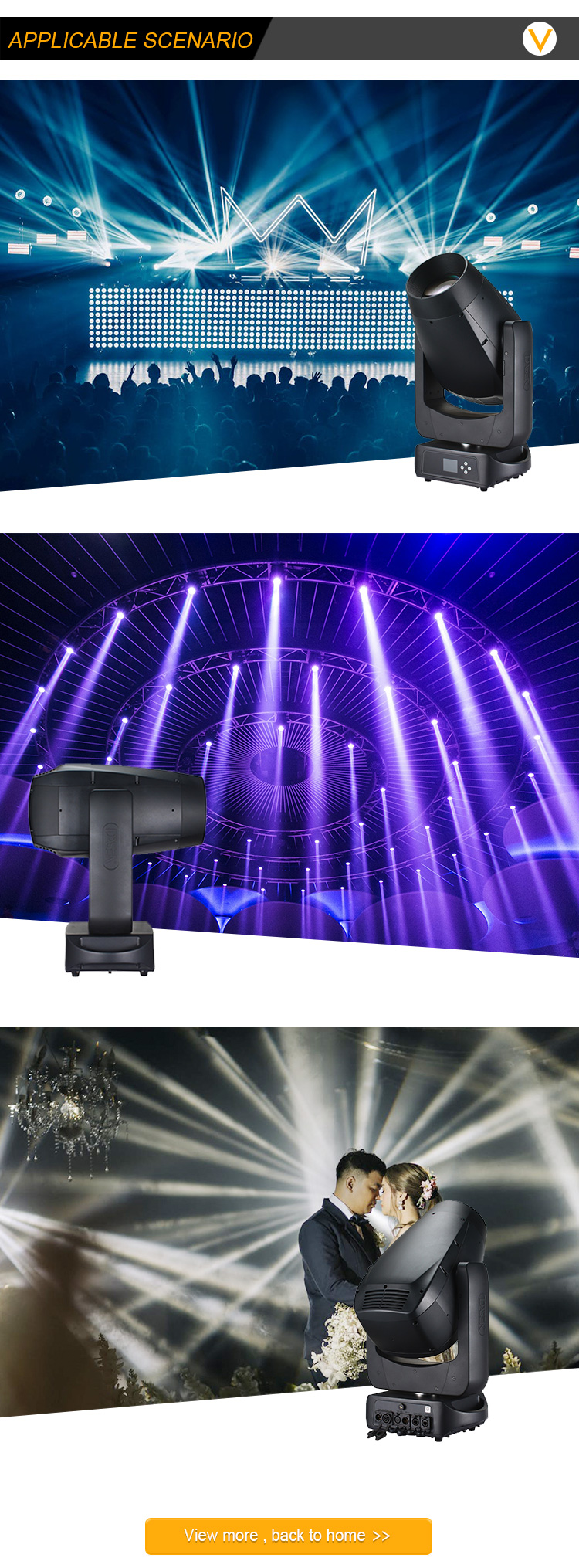

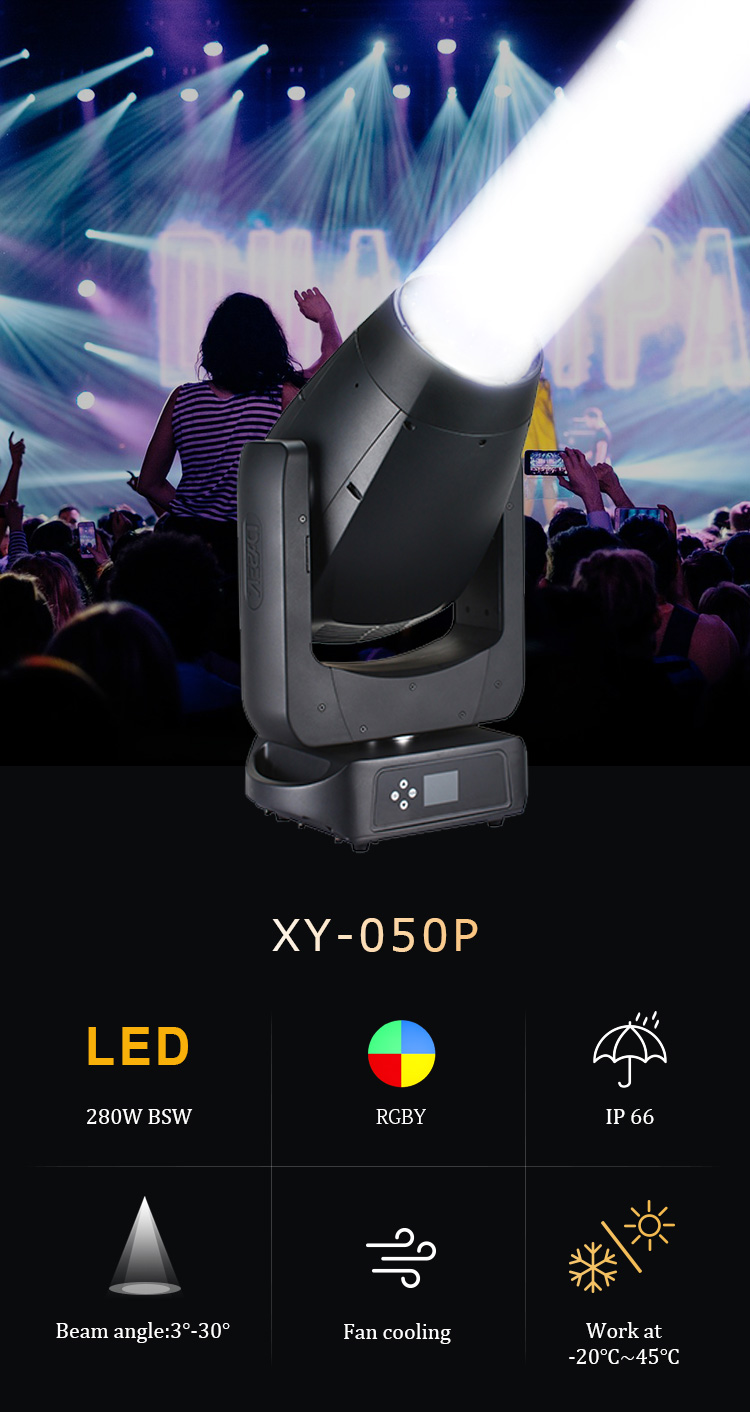

Imager H 280 is a professional 280W BSW moving head light designed for stage, live event, rental and entertainment applications. It combines beam, spot and wash capabilities with a 3–33° zoom range, rotating and fixed gobos, prism effects and DMX512 control, giving lighting designers and production teams flexible options for dynamic visual effects. With an IP66-rated design, Imager H 280 is also suitable for selected outdoor entertainment and event lighting applications.
Imager H 280
Key Features
Beam, Spot & Wash in One Fixture
Imager H 280 combines beam, spot and wash capabilities in one moving head fixture, giving lighting designers greater flexibility for different stage and event lighting requirements.
Innovative Color & Prism Effects
The fixture features patented four-color wheel technology and a colorful prism effect for creating dynamic and distinctive visual effects.
Versatile Gobo Effects
Imager H 280 provides 13+1 fixed gobos and 9+1 rotating gobos for varied projection patterns and creative stage effects.

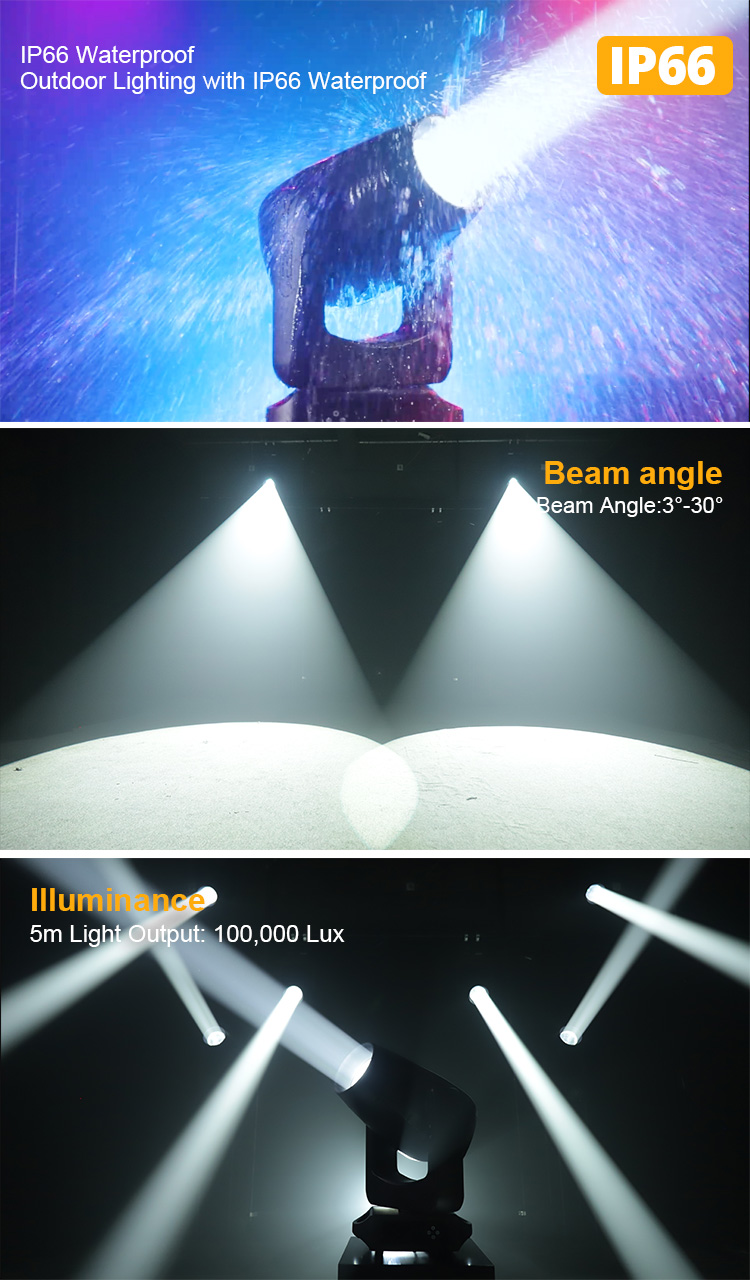

IP66-Rated Design
Its IP66-rated enclosure provides protection against dust and water exposure, supporting suitable outdoor stage and event applications.

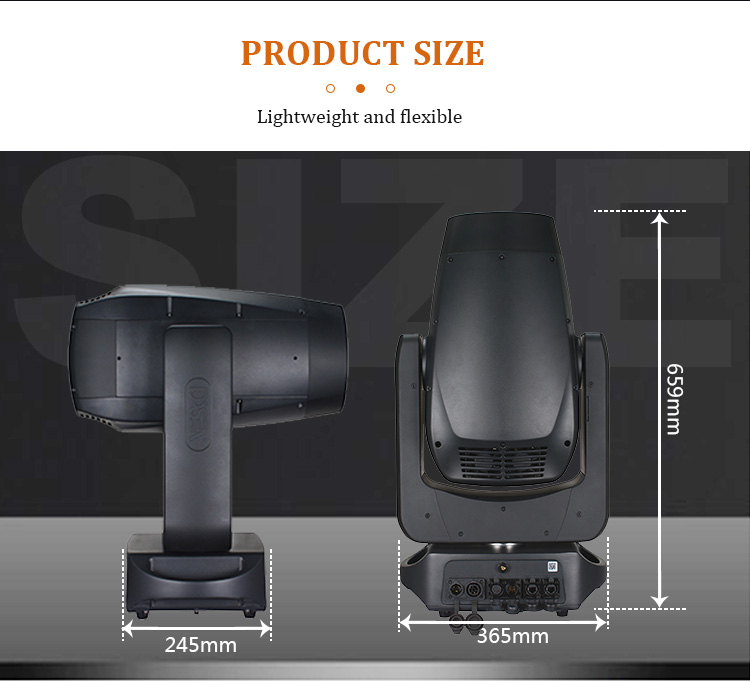

Compact Design for Stage & Rental
The compact fixture is designed for professional stage, live event and rental applications where flexible effects and reliable operation are required.
Product Detail
Color Temperature(CCT) | 8672K |
Type | Moving Head Lights |
IP Rating | ip66 |

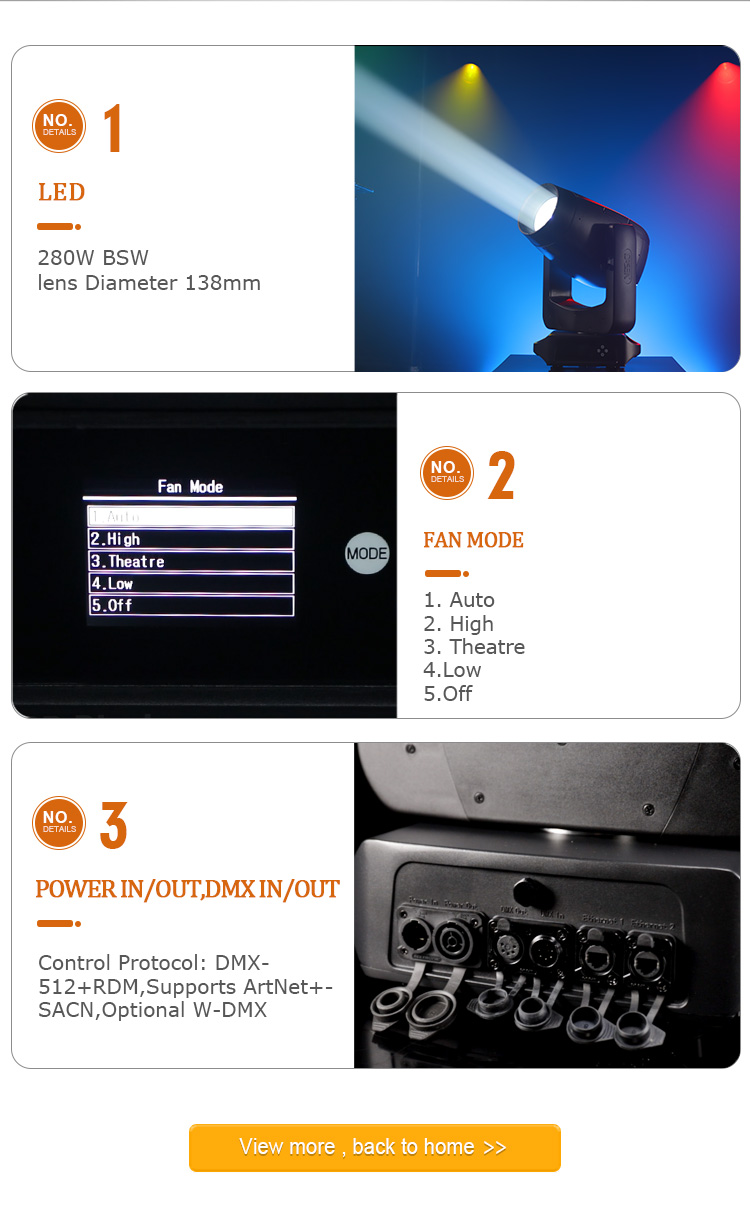

Control Method | DMX512 |
Product Weight（kg） | 23.5KG |

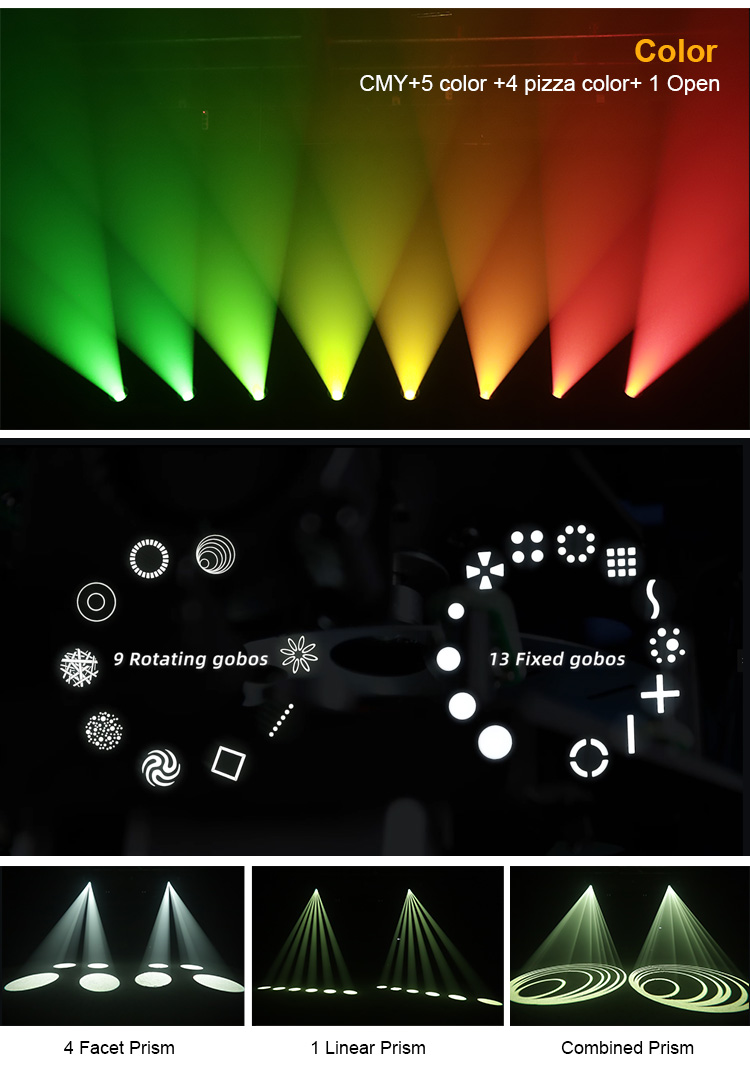

Emitting Color | CMY+5 color +4 pizza color+ 1 Open |
Color Rendering Index(Ra) | 74 |
Support Dimmer | Yes |
Lifespan (hours) | 50000 |
Lamp Luminous Flux(lm) | 9017 |
Application | Outdoor |
Source | 280W LED |

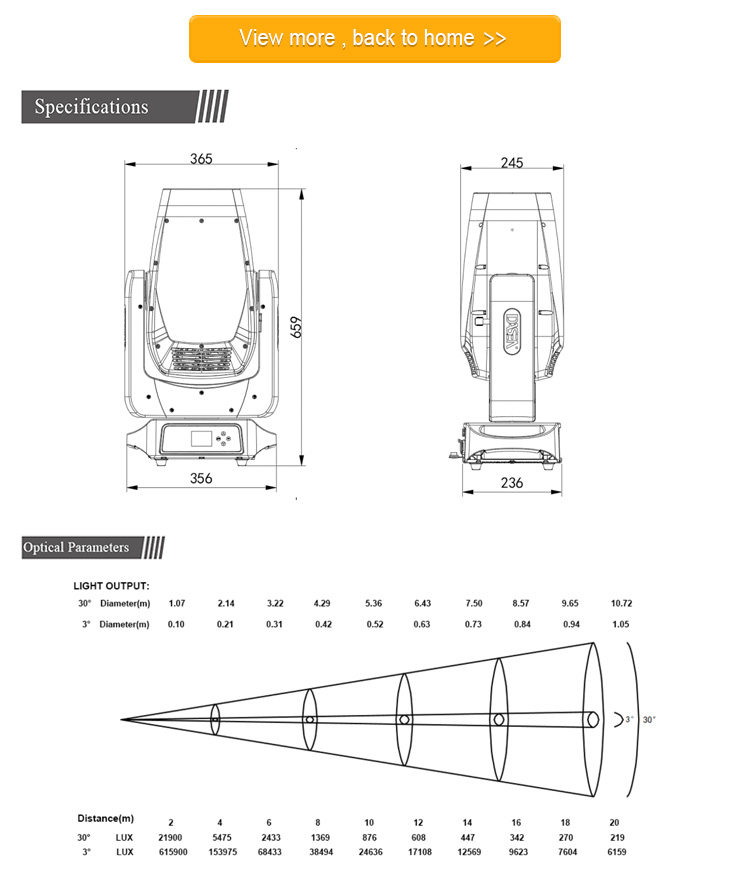

Beam angle | 3-33° |
Rotated gobo wheel | 9+1 open |
Fixed gobo wheel | 13+1 open |
Prim | 4 Facet Prism + 1 Linear Prism |
Certification | CE,ROHS |
GET A QUOTE
Related products
Frequently Asked Questions
Imager H 280 can produce beam, spot and wash effects along with gobo and prism effects for dynamic stage lighting. Its 3–33° zoom range and combination of 13+1 fixed and 9+1 rotating gobos give lighting designers flexibility in creating focused beams, projections and visual effects.
Yes, Imager H 280 is suitable for selected outdoor stage and event applications thanks to its IP66-rated design. The enclosure provides protection against dust and water exposure, making the fixture suitable for outdoor environments where appropriate installation conditions are met.
The 3–33° zoom range allows the Imager H 280 to adjust the beam from a narrow, concentrated effect to a wider coverage effect. This flexibility allows lighting designers to adapt the fixture to different distances, stage areas and visual effects without changing the fixture.
Beam, spot and wash effects provide different levels of beam concentration and coverage for different lighting requirements. Beam effects create concentrated, high-impact light beams, spot effects provide focused projection and pattern effects, while wash effects provide broader and more even illumination.
