KZ-002-A
KZ-002-A
Intuiit LCD display 8 DMX512 port extents controller for stage and landscape lighting
KZ-002A is a DMX signal converter based on data communication of a network based on the Art-Net protocol, which can receive network DMX data.

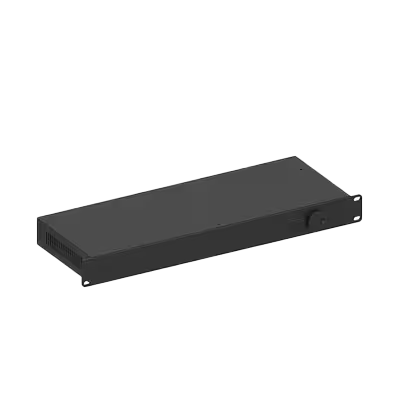

KZ-002A is designed as a standard 1U cabinet structure for easy installation in the standard control cabinet. With the LCD display, the setting operation is convenient and intuitive. KZ-002A provides 8 standard DMX512 data output ports and 8*512 data output ports. Different network segments can be set up to avoid the interference of multiple sets of Art-Net data in the same network.
KZ-002A is compatible with the lighting software with the Art-Net protocol. The output can control the stage lighting and LED lighting at the same time.
Product Detail
| ArtNet Convertor 8 Outputs | |
| Technical data | |
| Item No. | KZ-002-A |
| Work Voltage | AC 100-240V, 50-60Hz |
| Max. Power | 7.5W |
| Control Protocol | DMX 512 / Artnet / RDM / sCAN |
| Dvice Linking | Power in / out, Artnet in / out |
| DMX in & Outputs | 8 XLR 3-pin / 5pin female |
| Standard size | 19″ / 1 U, 483x169x49mm |
| Net Weight | 2 Kg |
| IP Rate | IP20 |
| Main Functions | |
| ♦ Bidirectional ArtNet Convertor | |
| ♦ Supports 2 Inputs and 8 Outputs | |
| ♦ Work Mode switch function: 1-in-8, or 2-in-4 | |
| ♦ Configure via integrated display | |
| ♦ Adjustable DMX repetition rate (10-40 Hz) | |
| ♦ 4096 Channels / 8 DMX universes | |
| ♦ Convert either Art-Net to DMX or DMX to Art-Net | |
| ♦ LEDs indicator to show work status | |
| ♦ Support protocols: DMX, RDM, Art-Net, sACN | |
