PRODUCT
KZ-018
KZ-018

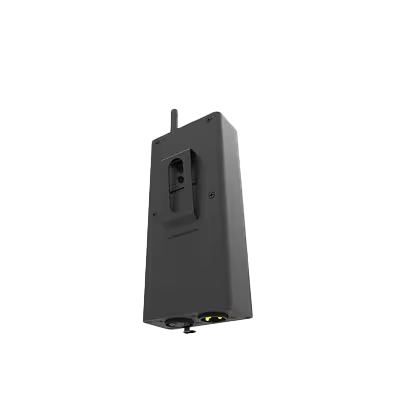

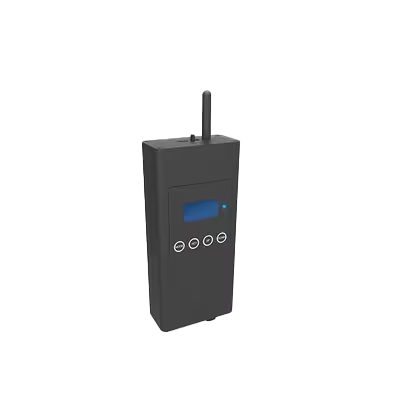

SmartController APP Connected Real Time DMX Control System
SmartController with APP function, OLED display DMX controller for led lights
KZ-018 is a DMX controller suitable for all LED lights. The system is composed of mobile phone software (SmartController) and a controller. The main functions of the mobile phone app include lamp management, real-time control, playback control, lamp programming, effect programming, RDM basic functions, upgrading controllers and upgrading Darson lamps, the code writing function, and controller parameter setting.
Product Detail
Detail
Download
Video
Detail
Specification :
Main function:
Interface Example:
Control Mode KZ018 as a WiFi hotspot, the control device (mobile phone) is connected to this hotspot, the dmx port of KZ018 is connected to the light or a device with a W-DMX module through a dmx signal cable.
| App control box | |
| Technical data | |
| Item No. | KZ-018 |
| Work Voltage | AC 100-240V, 50-60Hz |
| Max. Power | 13W |
| Control protocol | DMX512, RDM, W-DMX, WiFi |
| Dimension | 211*78*50mm |
| Net Weight | 0.6 Kg |
| IP Rate | IP20 |
Main function: | App control system: Control box+App software on mobile phone (App Name: SmartController) | |
| ♦ Fixture management | |
| ♦ Real-time control | |
| ♦ Play control | |
| ♦ Fixture programming | |
| ♦ Effect programming | |
| ♦ RDM Basic functions | |
| ♦ Controller upgrade and fixture upgrade | |
| ♦ Code writing | |
| ♦ Controller parameter setting |
Control Mode KZ018 as a WiFi hotspot, the control device (mobile phone) is connected to this hotspot, the dmx port of KZ018 is connected to the light or a device with a W-DMX module through a dmx signal cable.
