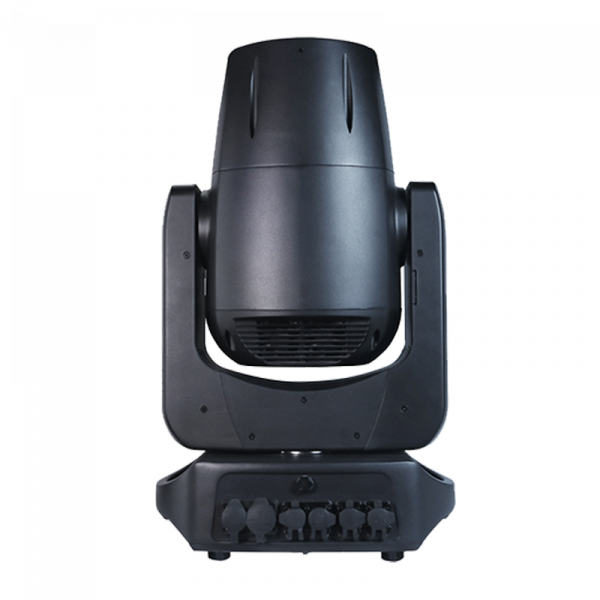

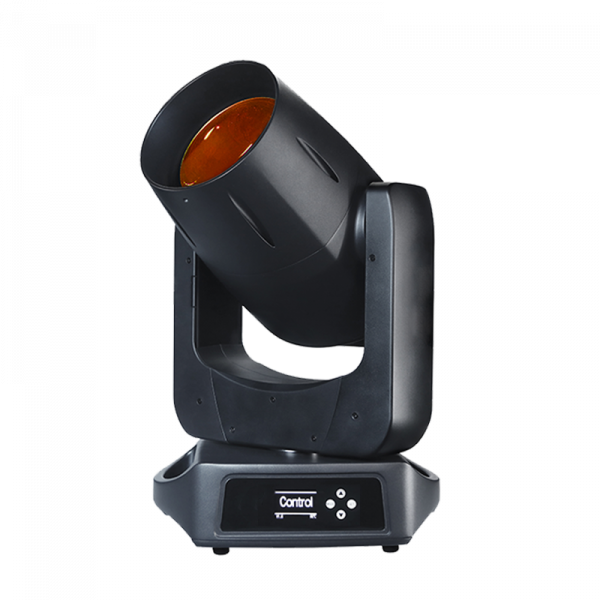

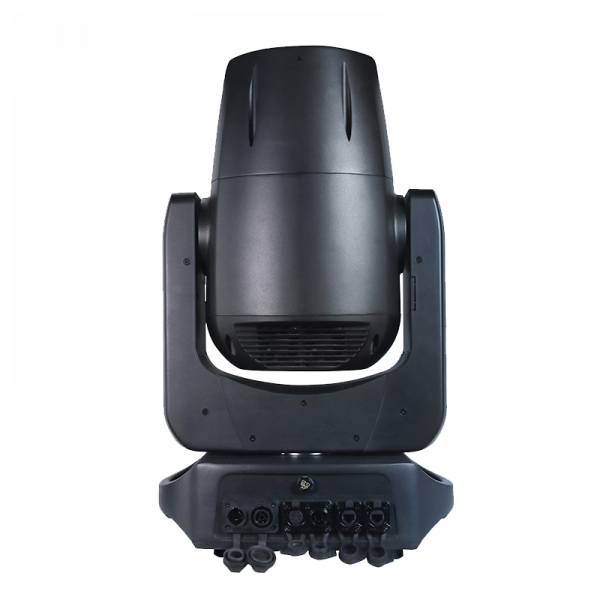

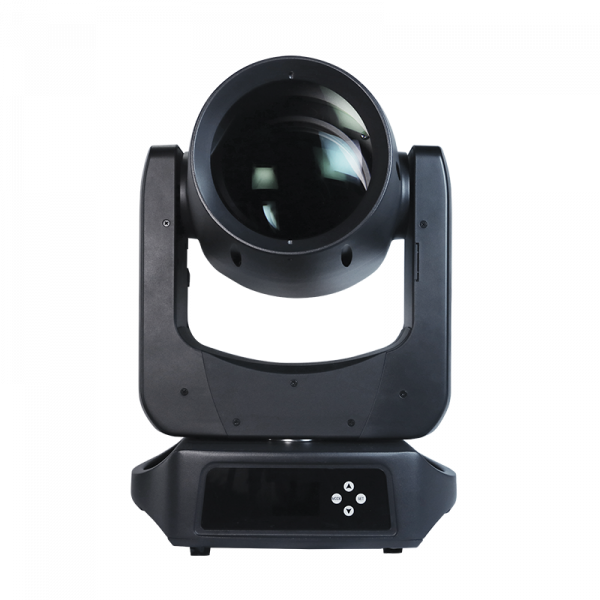

Dasen Imager is our brand of moving head.This series of products fully demonstrates our technological breakthroughs and product creativity in the lighting industry. We started from our original intention, providing solutions for users based on application scenes to let people can truly experience the value brought by lighting!Imager B200 is provided with a highly innovative colour section including patented eight colour wheel technology and most colourful prism effect. It offers a wide choice of 8+1 rotated gobos,IP rate is IP66 which increasing the possibilities for meeting any challenge in all conditions. This compact luminaire devised for stage and rental markets offers incredible creative potential.
Color Temperature(CCT) | 10226K |
Type | Moving Head Lights |
IP Rating | ip66 |
Control Method | DMX512 |
Product Weight(kg) | 22KG |
Emitting Color | 12+1 open |
Light Source | LED |
Lamp Luminous Efficiency(lm/w) | 8.98 |
Color Rendering Index(Ra) | 75 |
Lifespan (hours) | 50000 |

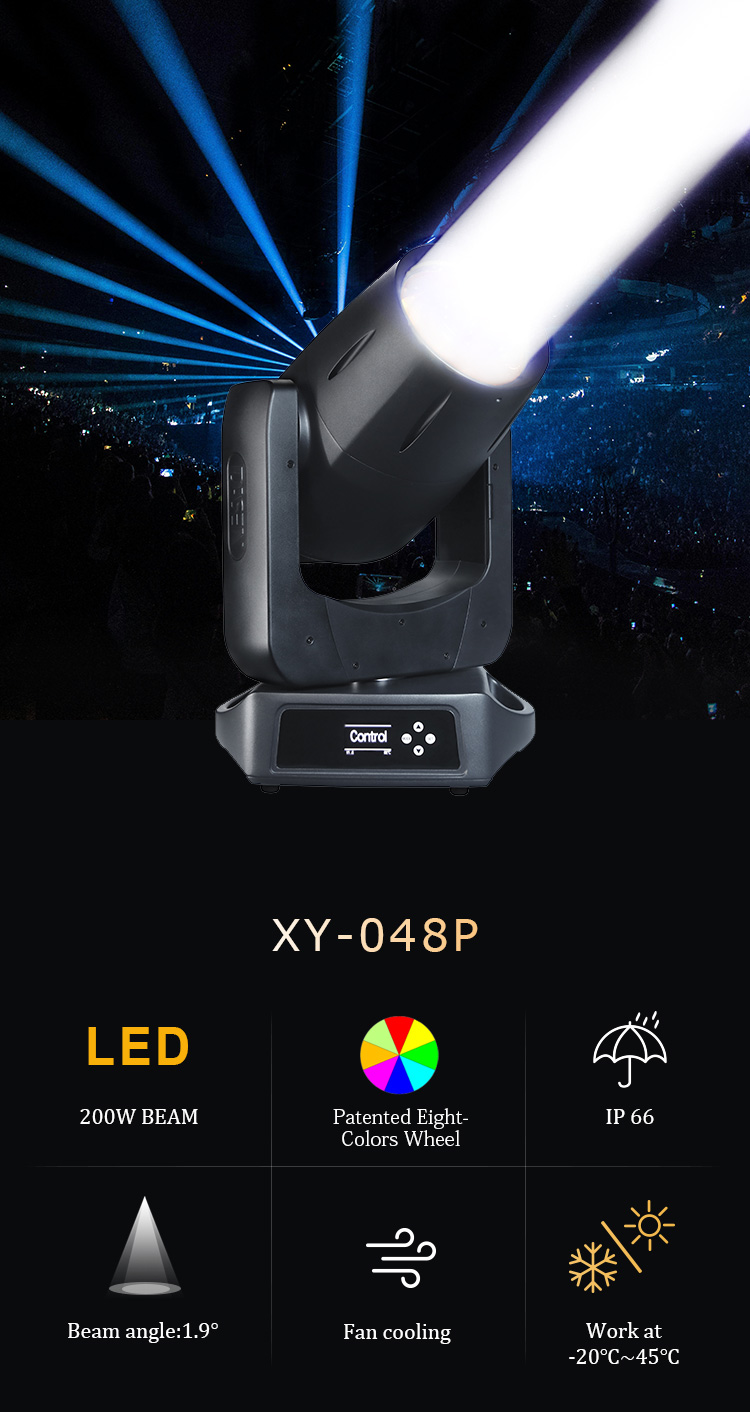

Source | 200W BEAM |

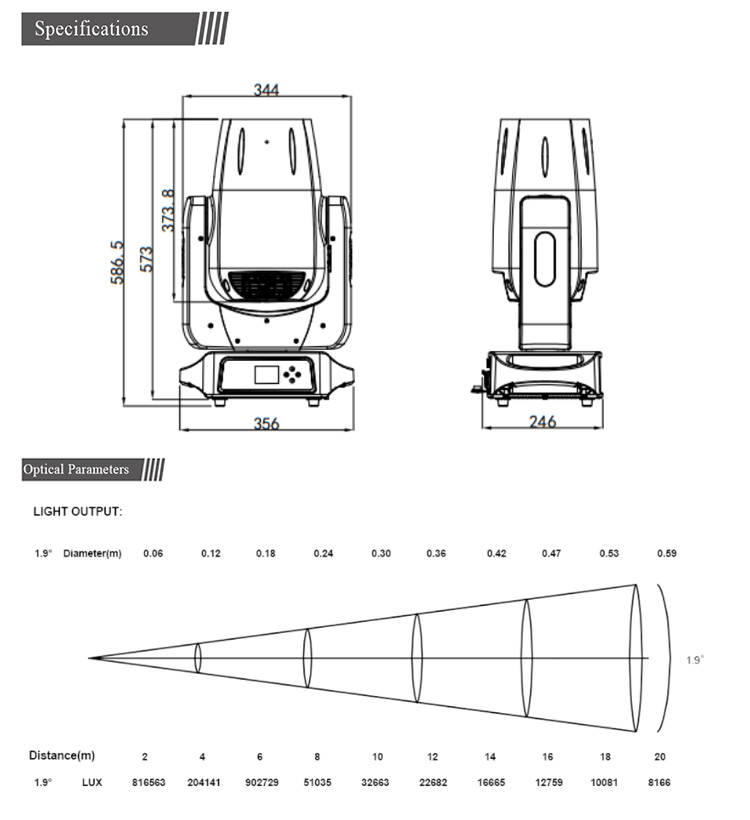

Beam angle | 1.9° |
Eight color wheel | 1 Eight color wheel |
Rotated gobo wheel | 8+1 open |
Prim | 8 facet Prism + 4 linear Prism |
Certification | CE,ROHS |
Rotated gobo wheel | 10+1 open |
Fixed gobo wheel | 23+1 open |
Prim | 18/36 facet Prism + 6 linear Prism |
Certification | CE,ROHS |
