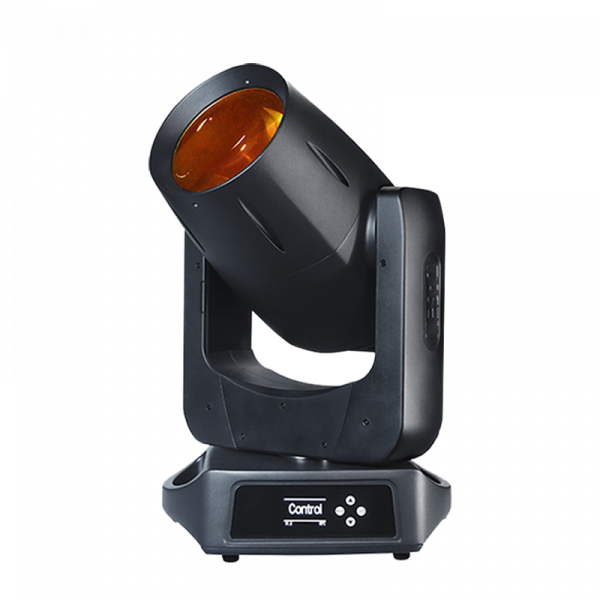

Dasen Imager is our brand of moving head.This series of products fully demonstrates our technological breakthroughs and product creativity in the lighting industry. We started from our original intention, providing solutions for users based on application scenes to let people can truly experience the value brought by lighting! Imager B100 is provided with a highly innovative colour section including patented eight colour wheel technology and most colourful prism effect. It offers a wide choice of 23+1 fixed gobos and 10+1 rotated gobos,IP rate is IP66 which increasing the possibilities for meeting any challenge in all conditions. This compact luminaire devised for stage and rental markets offers incredible creative potential.
Color Temperature(CCT) | 10000K |
Type | Laser Moving Head Lights |
IP Rating | ip66 |
Control Method | DMX512 |
Product Weight(kg) | 22KG |
Place of Origin | China |
Emitting Color | 12+1 open |
Material | aluminum alloy |
Color Rendering Index(Ra) | 75 |
Lamp Luminous Flux(lm) | 3000 |
Source | 100W Laser |
Color Temperature(CCT) | 10000K |
Beam angle | 0.8° |
Color wheel | 12+1 open |
Eight color wheel | 1 Eight color wheel |
CRI | 75 |
Rotated gobo wheel | 10+1 open |
Fixed gobo wheel | 23+1 open |
Prim | 18/36 facet Prism + 6 linear Prism |
Certification | CE,ROHS |
