1.Each images can be achieved fluttering effect
2.Very smooth Dimming gray transformation,gobo can be switched fexibly, accurate rotation and positioning
3.S upport DMX512 and RDM bidirectional protocol
4.Professional for cutural tourism market,commercial streets,theme parks,heme towns, theme restaurants,museums etc.
| Product Name | 400W Outdoor Gobo light | ||
| Item Number | Imager HD 400 | ||
| Product Measurement | 560*318*200MM | ||
| Inner Packing Size | 685*440*315MM | ||
| Packing Quantity | 1pc/Carton | ||
| N.W./G.W. | 16.15KG/18KG | ||
| Housing Material/Color | Die casting Magnesium Alloy/Matt Black | ||
| Device Linking | DMX in/out(3 pin),power in/out | ||
| Max Power | 426W | 426W @100V | 419W @240V |
| Power Factor | 0.966 @100V | 0.938 @240V | |
| Input Current | 4.27A @100V | 1.75A @240V | |
| Power line System | European/American | 2 PCS @100V | 7 PCS @240V |

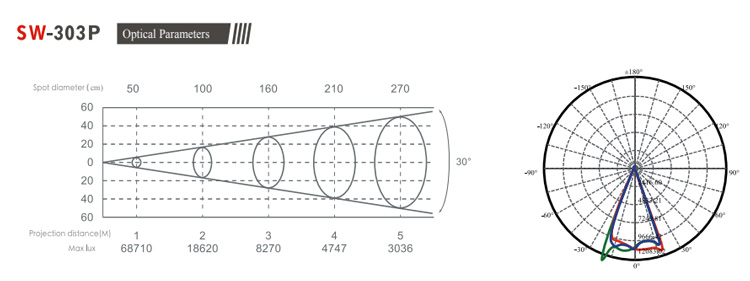

| Beam Angle(Optional) | 10-30°,30°,55° | Spot Angle | 35° |
| Data Protocol | DMX512/RDM | ||
