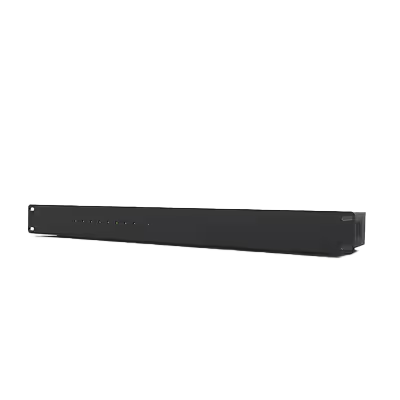

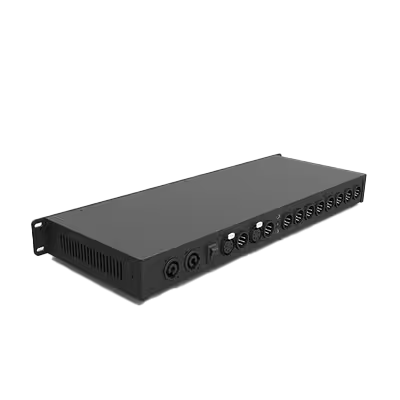

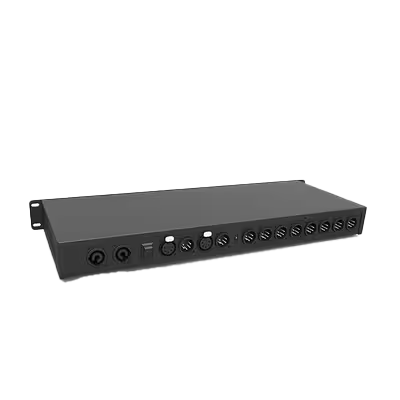

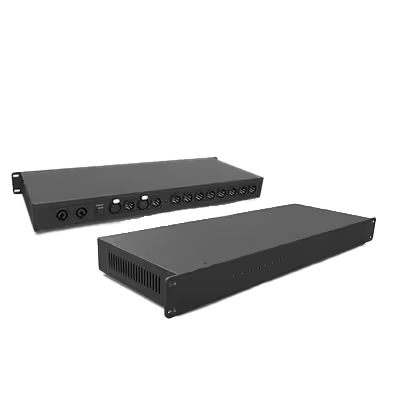

DMX 2 inputs and 8 Outputs signal amplifier with RDM function for led lighting
KZ-003 is a strong DMX anti-interference signal amplifier; it enhances the signal transmission. It has 2 inputs and 8 outputs, supporting the RDM function, so it can extend the transmission distance of the signal and enhance the ability of signal drive. The housing material is cold-rolled plate; the great feature can resist high voltage up to 1000V. KZ-003 is suitable for all Intuiit series lights.
| DMX / RDM Amplifier 8 Outputs | |
| Technical data | |
| Item No. | KZ-003 |
| Work Voltage | AC 100-240V, 50-60Hz |
| Max. Power | 3W |
| Control protocol | DMX512 / RDM |
| Dimension | 483* 170*49 mm |
| Net Weight | 1.94 Kg |
| IP Rate | IP20 |
| Main Functions | |
| ♦ Signal amplifier | |
| ♦ RDM signal transmission | |
| ♦ Supports 2 Inputs and 8 Outputs | |
| ♦ Work mode switch function: 1-in-8 or 2-in-4 | |
| ♦ Spport protocols:DMX512 / RDM | |
| ♦ Signal isolation of DMX 512port | |
| ♦ Support signal code writing transmission | |
| ♦ LEDs indicator to show work status | |
