1.Gobo can be switched flexibly, accurate rotation and positioning,Support custom-made images to achieve water wave effect
2.Very smooth Dimming gray transformation
3.Support DMX512 and RDM bidirectional protocol

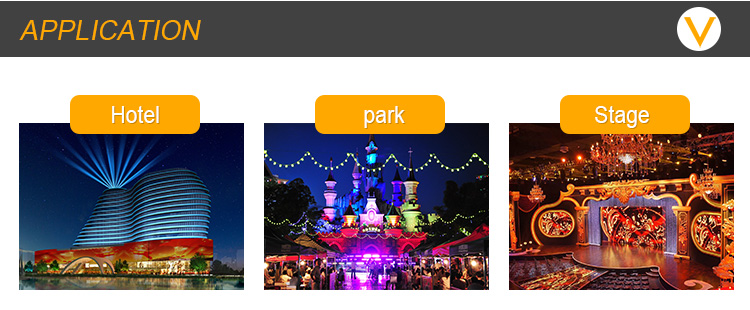

4.Professional for the cultural tourism market, theme park,night view of distinctive town, live-action performance,bridge piers ete

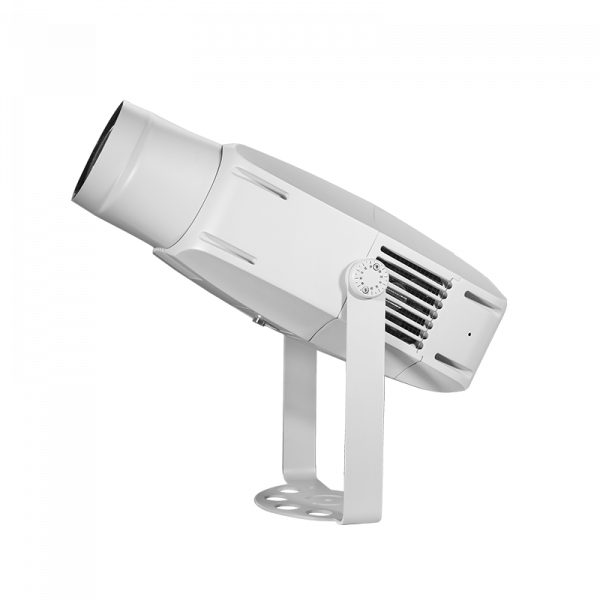

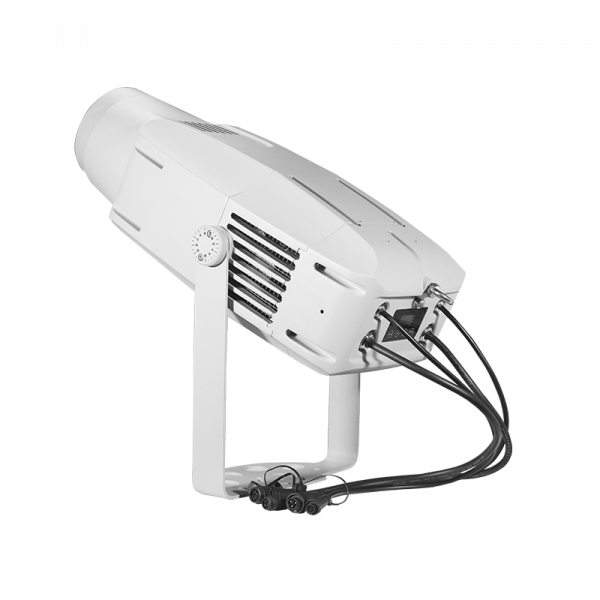

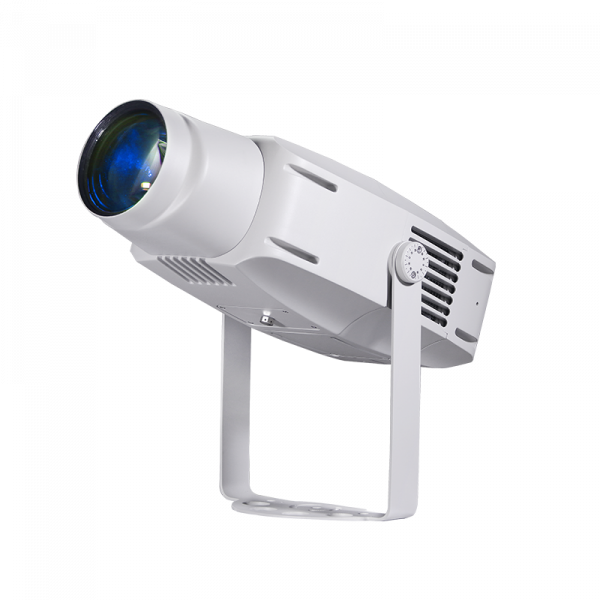

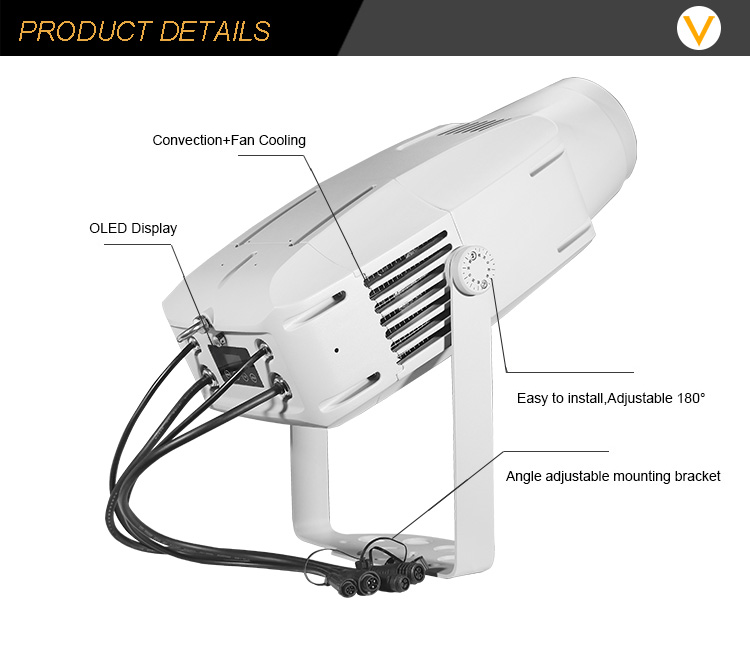

Product Name | 400W cutter water wave projector | ||
Item Number | SW-309P-A | ||

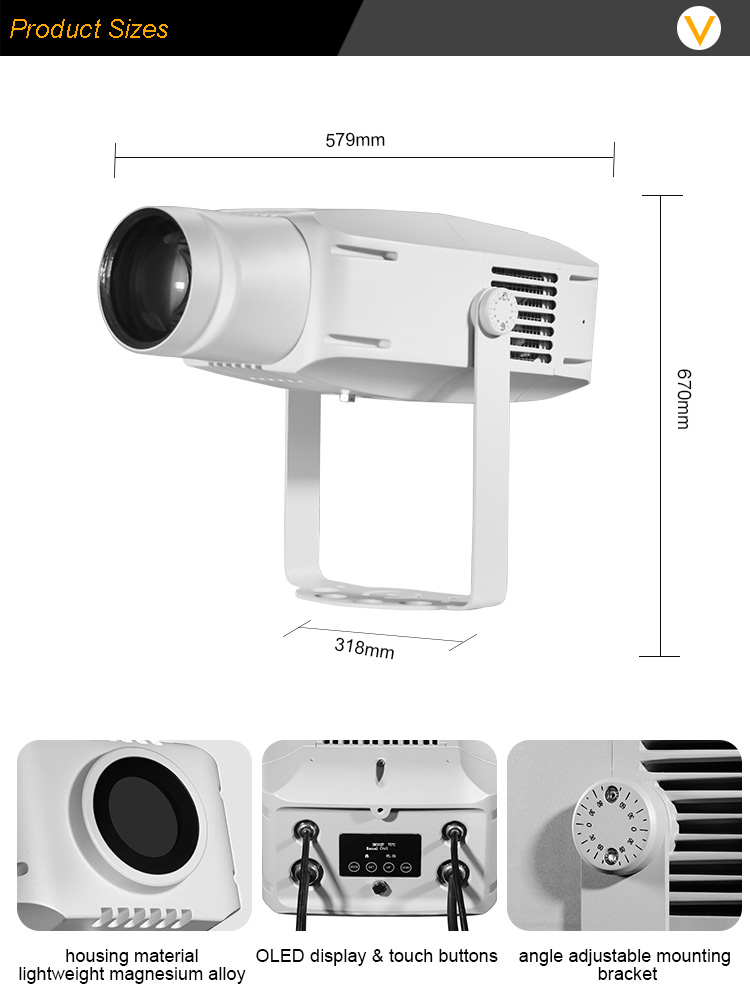

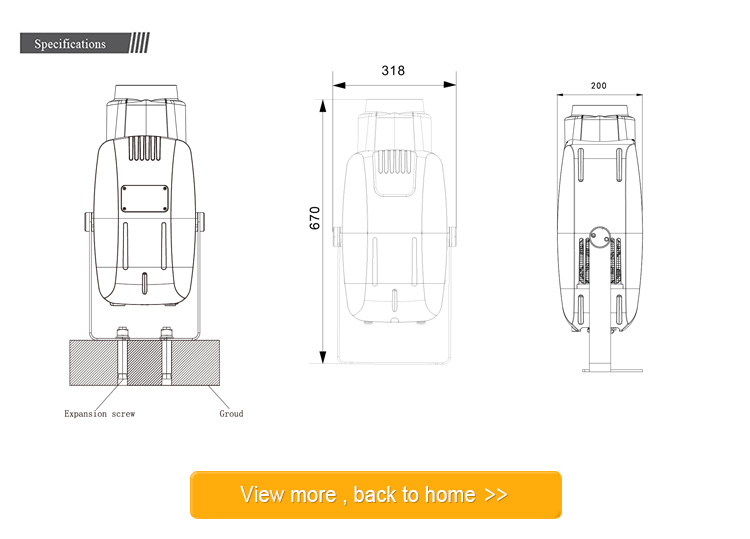

Product Measurement | 670*318*200MM | ||
Packing Quantity | 1pc/Carton | ||
N.W./G.W. | 20KG | ||
Housing Material/Color | Die casting Magnesium Alloy | ||

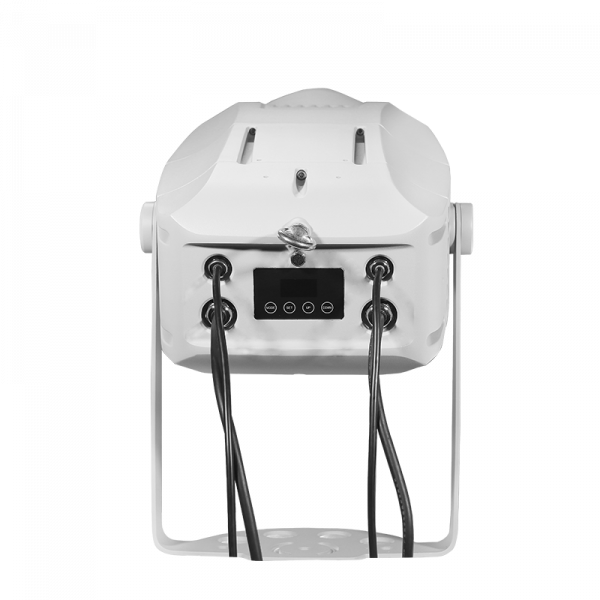

Device Linking | DMX in/out(3 pin),power in/out | ||
Max Power | 429W | 429W @100V | 419W @240V |
Power Factor | 0.974 @100V | 0.932 @240V | |
Input Current | 4.54A @100V | 1.92A @240V | |
Power line System | European/American | 2 PCS @100V | 7 PCS @240V |
Spot Angle | 15° | ||
| Beam Angle(Optional) | 35°,60° | Spot Angle | 35°,60° |
| Data Protocol | DMX512,RDM | ||
