| Product Name | 60W HD image prjection | ||||||||
| Item Number | SW-060P | ||||||||

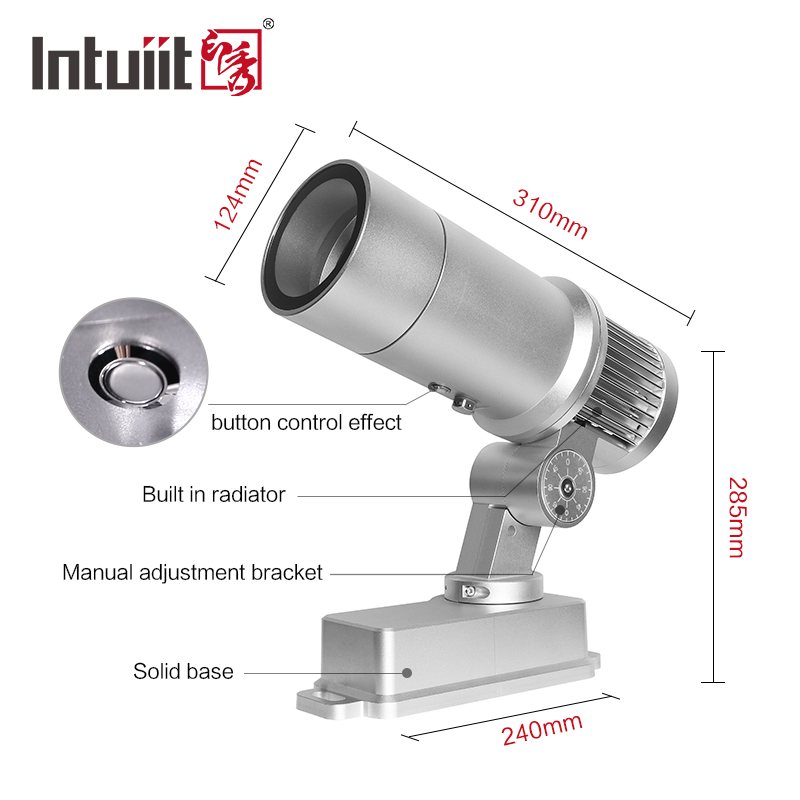

| Physical Character | Product Measurement | 310*285*124MM | |||||||
| Inner Packing Size | 42.5*40*24CM | ||||||||
| Outer Packing Size | 50.5*87.5*43.5CM | ||||||||
| N.W | 4.5KG | ||||||||
| G.W | |||||||||
| Housing Material | aluminium alloy | ||||||||
| Housing color | Matt Black/Grey | ||||||||

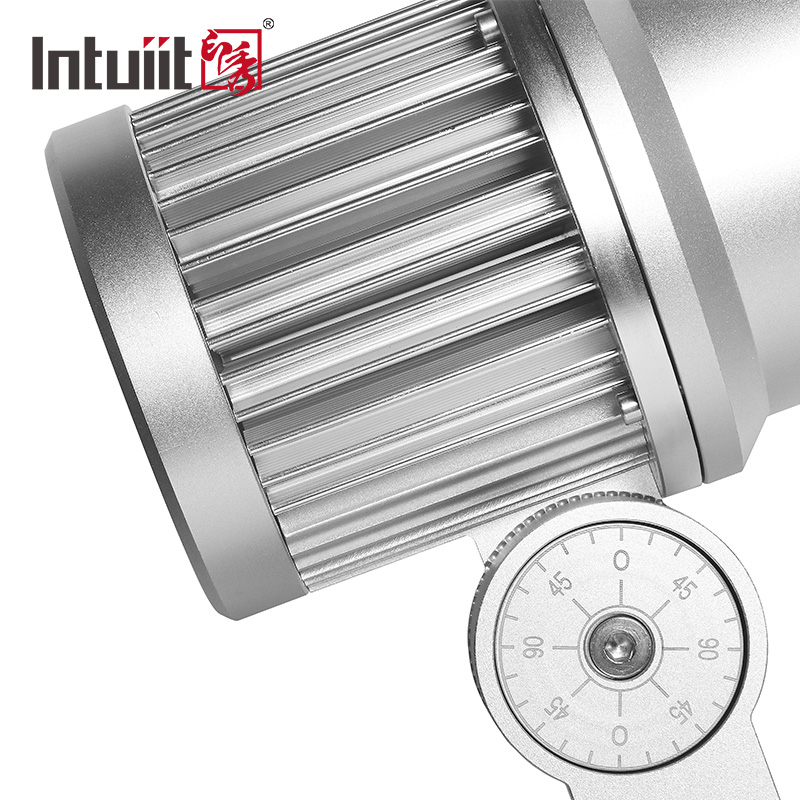

| Cooling way | Natural heat dissipation | ||||||||
| Electric Parameters | Input Voltage | 100-240V AC,50-60Hz | |||||||
| Max Power | 64W @100V | 63W @240V | |||||||
| Power Factor | 0.992PF @100V | 0.911PF @240V | |||||||
| Input Current | 0.65A @100V | 0.3A @240V | |||||||
| Power line System | 15pcs @100V | 30pcs @240V | |||||||
| LED source | COB 60W | ||||||||
| Drive Current | 4A | ||||||||
| Optical System | Dimming | 0-100% | Lumen | 1686 | |||||
| Strobe | 0-20HZ | Luminous Efficiency | 26.27 | ||||||

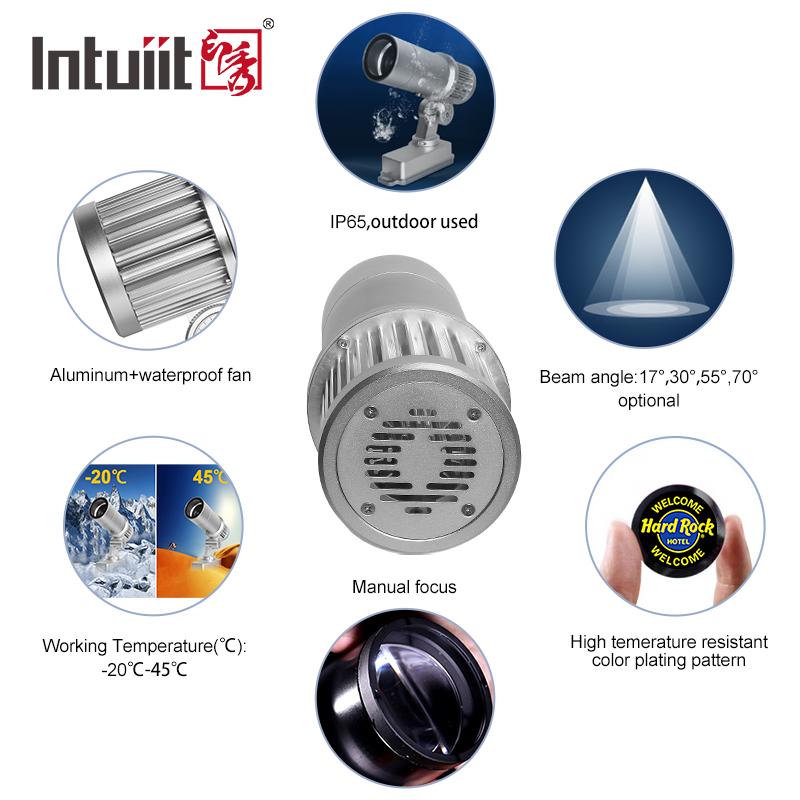

| Spot Angle | 17, 30, 55, 70 degree | ||||||||
| Rotating gobo wheel | / | / | CCT | 8000 | |||||
| Fixed gobo wheeel | / | / | Ra | 77 | |||||
| Color wheel | / | / | / | ||||||

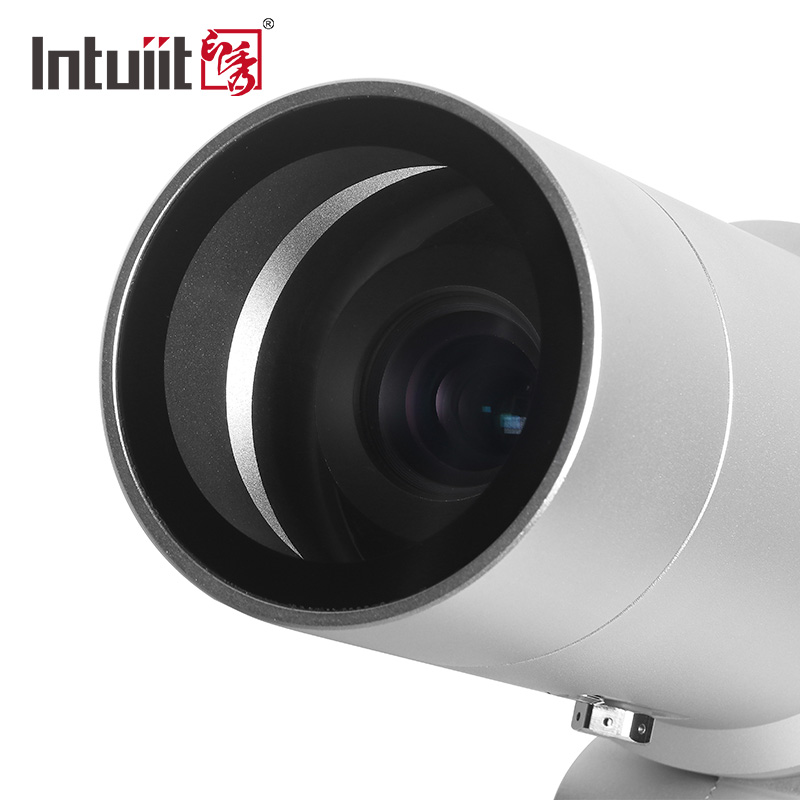

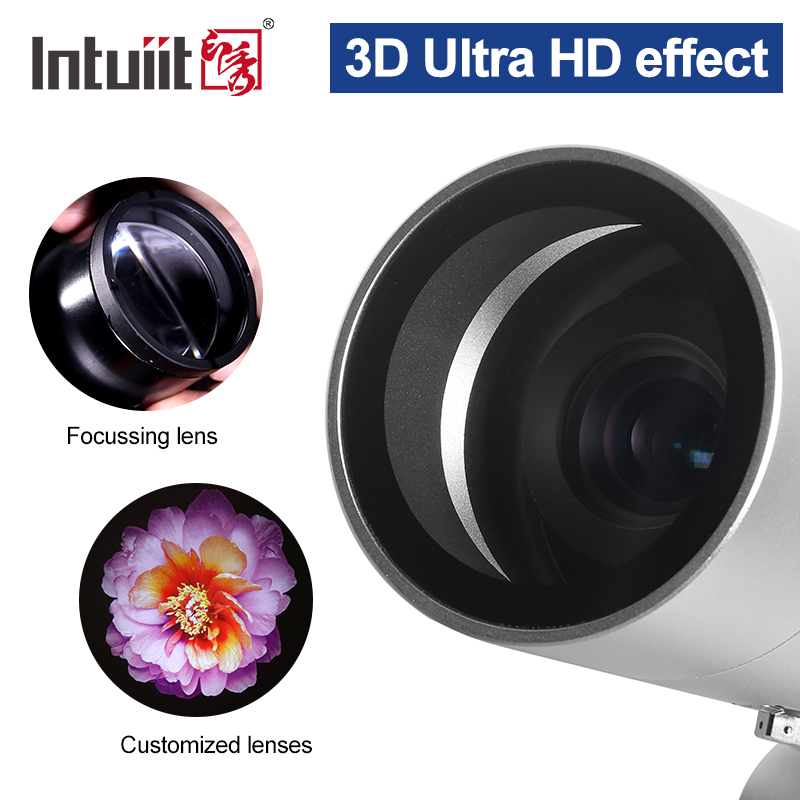

| Focus | have | Zoom | |||||||
| Control | Control protocol | DMX512,RDM | |||||||
| Power cable output | 3 pins M19 male/female 2 pins M16 male/female | ||||||||
| DMX cable output | |||||||||

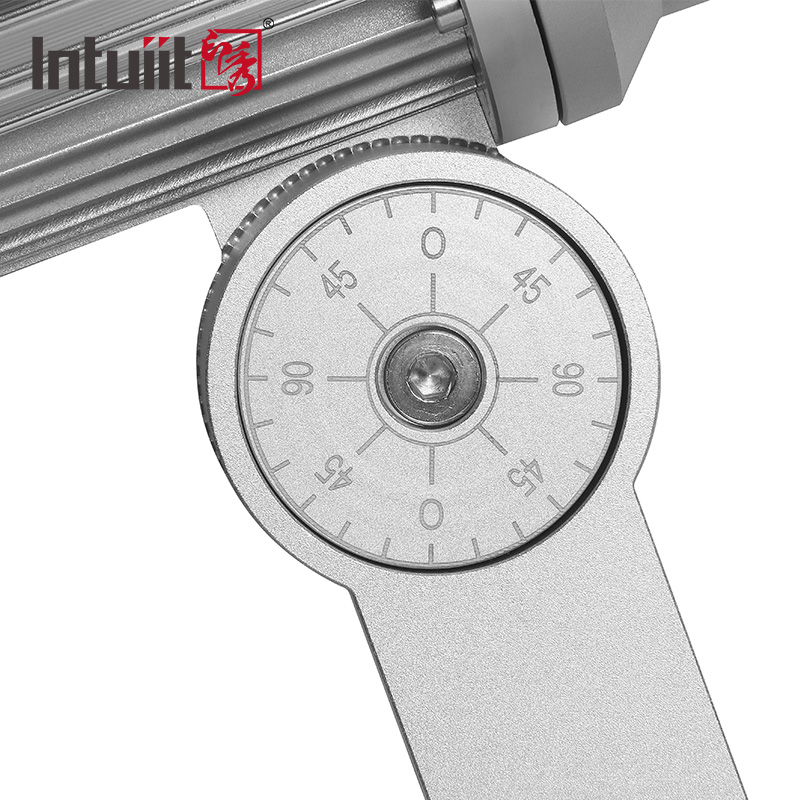

| Lamp direction | Adjustable | ||||||||
| Power supply | Built in | ||||||||
| Operation mode | Button operation | ||||||||
| Function | RDM, Master/Slave, DMX | ||||||||
| Safety | Certificate | ROHS、CE | |||||||

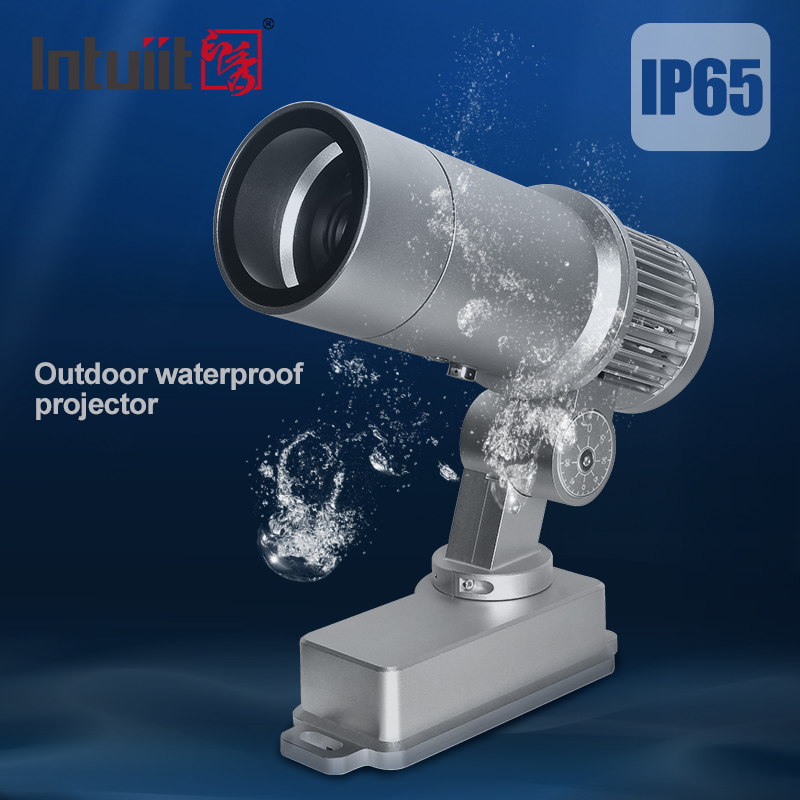

| IP Grade | IP65 | ||||||||

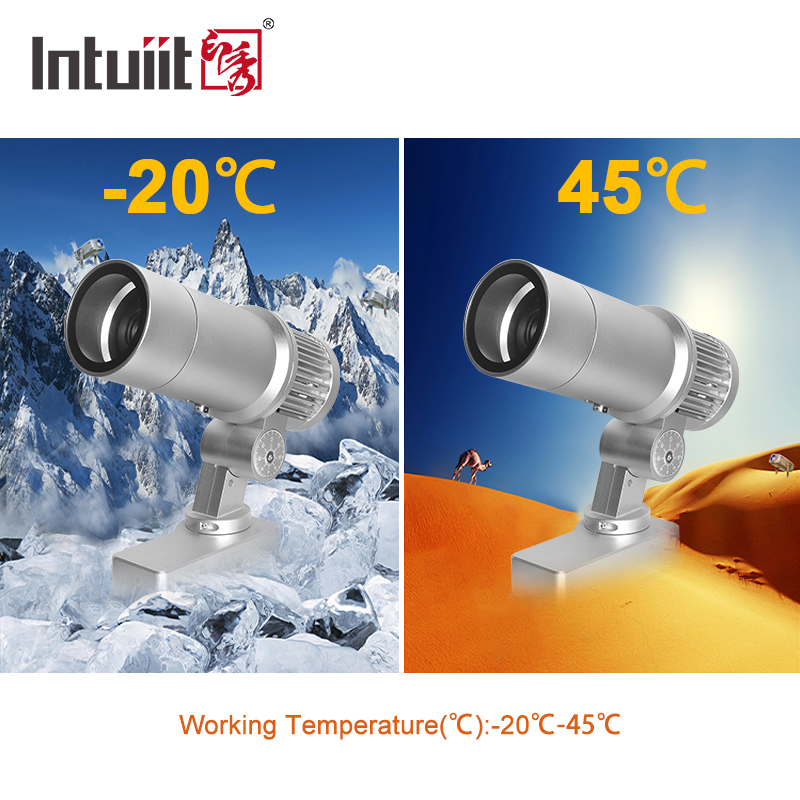

| Permitted Ambient Temperature | -20°～+45° | ||||||||
