Mini led color lights die-casting aluminium DMX DC24V IP65 RGBW spot light for garden

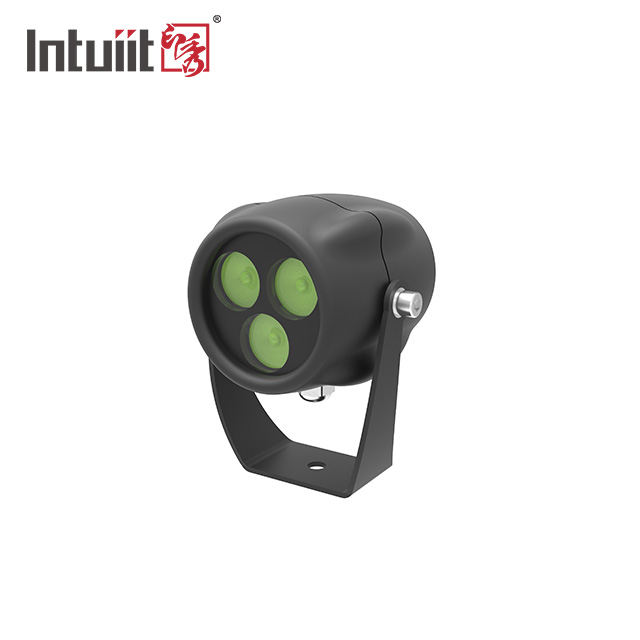

TG009 is a professional mini - round
LED spot light projector,the fixture has configurated superior optical
system.It also have rich angles for different application. We do have 3W
and 6W version optional.
Color change is natural, with better color mixing, meanwhile,it also have have single white LED type optional.It supports DMX512 or ON/OFF. TG009-3W could be DC24V or 220V optional. This fixture can be widely used in theme park,theme town and other places
Specification:
Item Number | TG009-6W-D | TG009P03(D) | TG009-3P3C | TG009P05-RGBW(D) |
| LED Qty | 3PCS | |||
| Beam Angle | 10°/20°/30°/45°/60° Optional | 20 °/30 °/45 °/60 ° Optional | ||
| Spot Angle | 20°/40°/60°/80°/100°Optional | 40°/60 °/80 °/100 ° Optional | ||
| Lumen | 440lm | 440lm | 177lm | 175lm |
| CRI | Ra≥70 | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000/4000/6000K Optional) | |
| Product Measurement | 103*89*85MM | |||
| N.W. | 0.5KG | |||
| Input Voltage Range | DC24V | |||
| Watts | 6W | |||
| Power Factor | ＞0.9 | |||
| Housing Material | die-cast aluminium | |||
| Color | Matt black / Grey | |||
| Cooling | Natural convection cooling | |||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 |
| Channel | / | |||
| Power /Installation | Independent | |||
| Conection | 2pin rubber cable:input/output | black rubber cable 5 Pin In & Out | ||
| Power Linking | 30PCS | |||
| DMX Linking | / | 128pcs | ||
| Certification | CE,RoHS | |||
| IP Grade | IP65 | |||
Installation:
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during
the guarantee period, we will send new spare parts for replacement. For
defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
