100W Gobo Effect LED Spot Moving Head Light │ XY-100SPOT

  • Category:Moving Head Light
  • Introduction:High brightness LED Stage light 100W Spot Moving head light gobo effect light for disco and stages
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us


High brightness LED Stage light 100W Spot Moving head light gobo effect light for disco and stages


XY-100SPOT is powerful moving beam in our product line. It used 100W white led as light source. Beam angle 15Degree, has one rotation gobo wheel, which include 7+1 gobos, and featured electronic focus, triple prism.with both 3pin&5pin DMX in&out, Seetronic power con in&out, the connection of the moving head is convenient and easy.

There is lots of application by this moving head light. You may use it in stage, clubs and events. The moving speed of the pan and tilt is very fast and quite. It include the rich modes like master/slave, sound, built-in problem, auto running, DMX. The very good performance would earn a lot of benefit for the users.

The weight of fixture is much lighter than the other similar product in the market. That make it more easily to be installed and transferred in the application.


Technical Data

?Item No.?XY-100SPOT
?Light Source?100W White LED
?Max. Power?173W
?Work voltage?AC100-240V, 50-60Hz
?Beam angle?15o
?Control Protocol?DMX512
?DMX Channels?11CH,14CH
?Color Wheel?7+1(white)
?Rotation Gobo wheel?7+1 gobos
?Prism?Triple Prism
?Focus?Electronic focus
?Pan/Tilt?Pan:540o, Tilt:270o
?IP Grade?IP20
?Dimension?316*306*410mm
?Net Weight?10KG

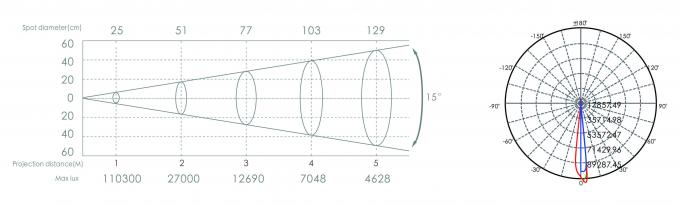

Light Distribution Data

Product's Dimension

?

Installation Diagram


FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

?

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

?

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
