YL-017A-4PAR
YL-017A-4PAR

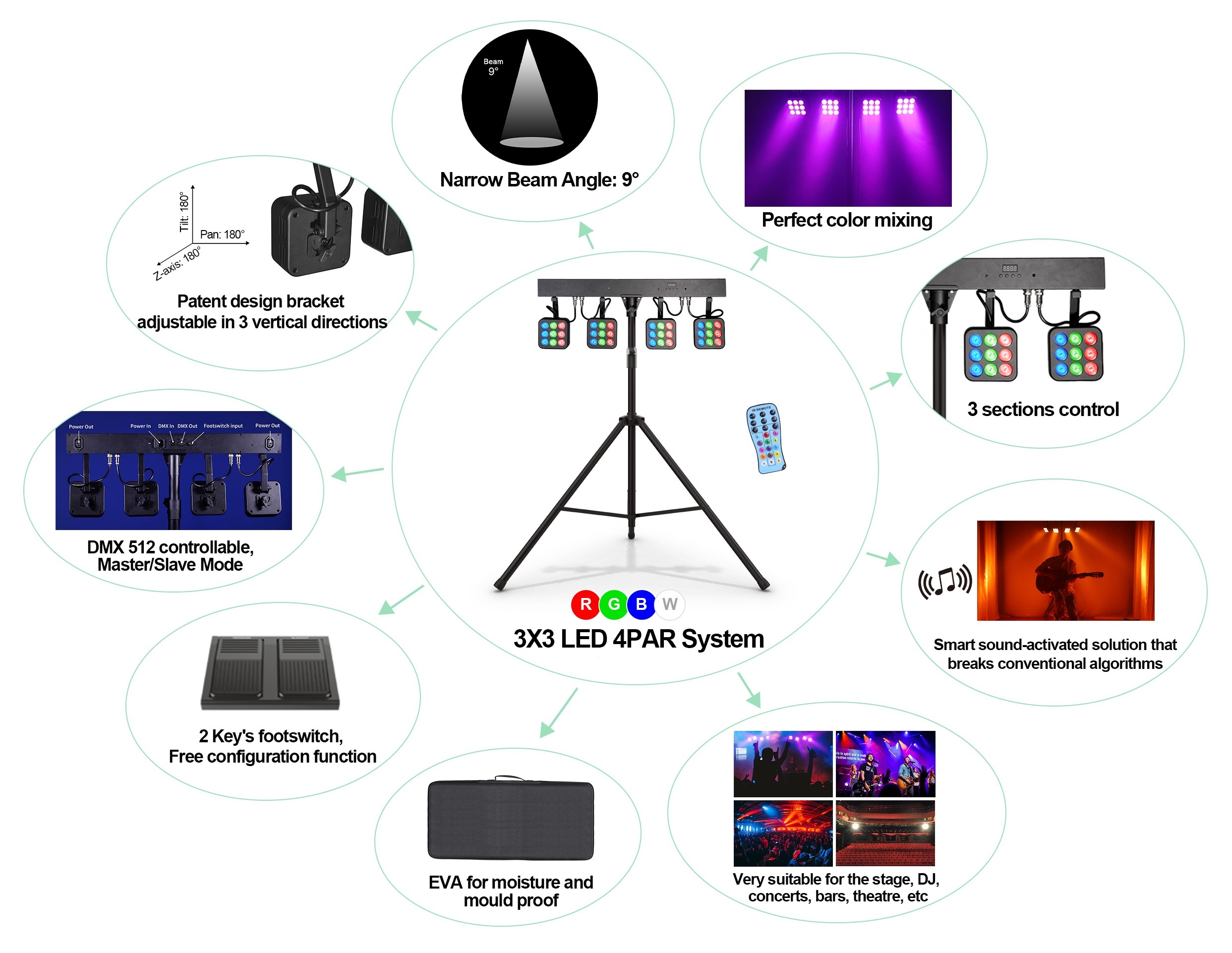

3X3 LED 4PAR System
- 3X3 LED 4PAR System
- Narrow Beam Angle: 9° for focused, high-intensity output
- Perfect color mixing – seamless and uniform
- Patent-designed bracket – adjustable in 3 vertical directions
- 3-section control for versatile operation
- DMX 512 controllable & Master/Slave Mode
- Smart sound-activated solution – breaks conventional algorithms for dynamic response
- 2-key footswitch with free configuration function
- EVA protection – moisture and mould proof
- Ideal for: stages, DJ setups, concerts, bars, theatres, and more
Product Detail
Detail
Download
Video
Detail
YL-017A-4PAR | |
N.W. | 5.2KG |
Dimensions | 702*257*92MM |
Operating voltage | AC100-240V 50-60Hz |
LED Source | 36*4W RGBW LED |
Light efficiency | 26 Im/W |
Drive current | 6.5A |
Dimming | 0-100% |
Beam angle | 9° |
Luminous flux | 3568lm |
CCT | RGBW(W:3000/6000K) |
Function | Auto Run,Sound mode,Static color,Buiit-in,Master & Slave,DMX,RDM |
Control protocol | DMX512 |
IP Grade | IP20 |
