PRODUCT
TG-009
TG-009
Outdoor Slim Par
Mini led color lights die-casting aluminium 6W DMX DC24V IP65 RGBW spotlight for garden
Mini 6W LED Spotlight With Different LED Types.

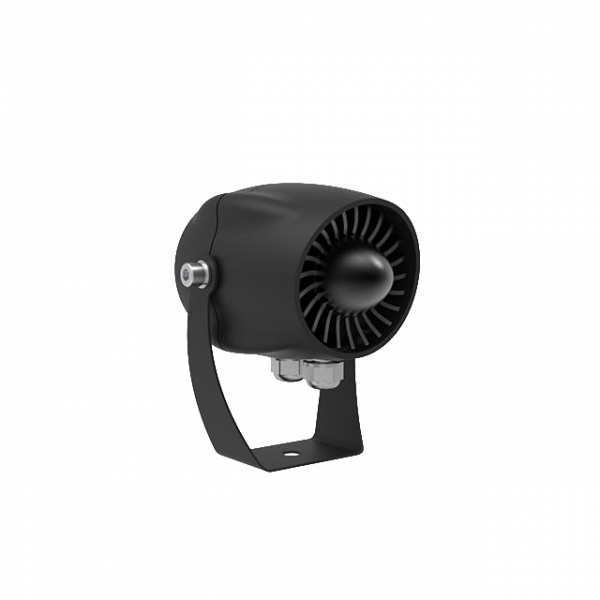

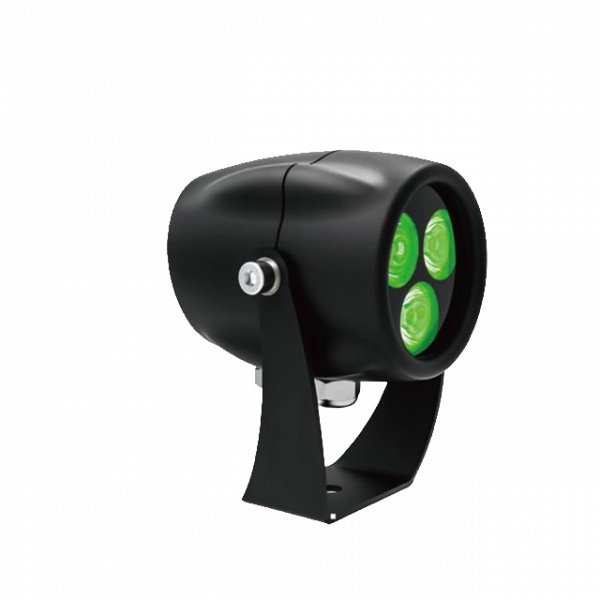

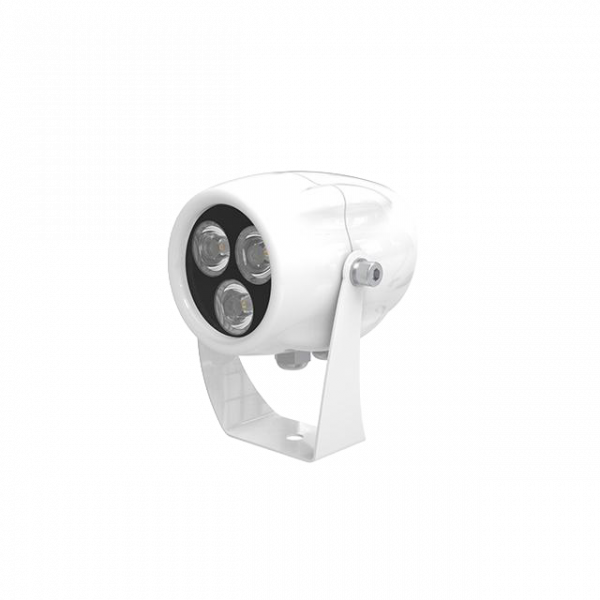

TG009 is a professional mini-round LED spotlight projector; the fixture has a configured superior optical system. It also has rich angles for different applications. We do have 6W version optional.
Color change is natural with better color mixing; meanwhile, it also has a single white LED type optional. It supports DMX512 or ON/OFF. TG009-3W could be DC24V or 220V optional. This fixture can be widely used in theme parks, theme town and other places
Product Detail
Detail
Download
Video
Detail
Specification:
| Item Number | TG-009-3W | |||
| LED Qty | 3PCS | |||
| Beam Angle | 10°/20°/30°/45°/60° Optional | |||
| Spot Angle | 20°/40°/60°/80°/100°Optional | |||
| Lumen | 165 | |||
| CRI | Ra≥70 | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | |
| Product Measurement | 103*89*85MM | |||
| N.W. | 0.5KG | |||
| Input Voltage Range | DC24V | |||
| Watts | 3W | |||
| Power Factor | ＞0.9 | |||
| Housing Material | die-cast aluminium | |||
| Color | Matt black / Grey | |||
| Cooling | Natural convection cooling | |||
| Control Protocol | ON/OFF | DMX512 | ||
| Channel | / | |||
| Power /Installation | Independent | |||
| Conection | 2pin rubber cable:input/output | black rubber cable 5 Pin In & Out | ||
| Power Linking | 30PCS | |||
| DMX Linking | / | 128pcs | ||
| Certification | CE,RoHS | |||
| IP Grade | IP65 | |||
